# Make Games With LÖVE!

![](logo-love.png)

---

# Seppi
### josefnpat@gmail.com

Game Developer, Cat Herder, Hat Wearer, etc.

![](avatar.png)

---

## What is LÖVE?

### LÖVE = Game Framework

* Backend: SDL, OpenAL, OpenGL, and much more.
* Frontend: Lua 5.1 (LuaJIT)

![](Roxbury-Brothers-Jim-Carrey-Head-Dance.gif)

_Baby, don't hurt me..._

---

## Lua 5.1 (LuaJIT)

* Small syntax set (Easy to learn!)
* Easily embeddable (Easy to hook into advanced libraries!)
* Fast (Zoom!)

![](lua.png)

---

## Installed?

If you don't have love installed, go ahead and do so now.

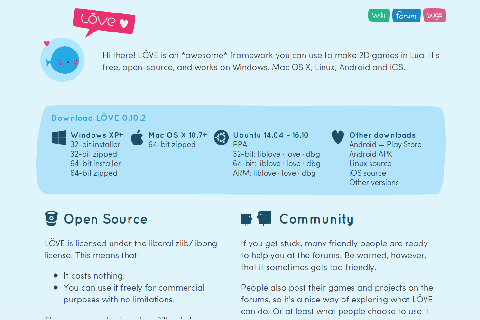

* Visit http://love2d.org
* This lesson uses `LÖVE 0.10.2` "Super Toast"

![](website.png)

---

## Confirm Install?

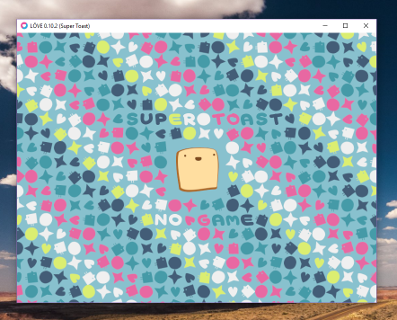

Run your love binary to make sure it works.

You should get the no-game screen with super toast:

![](no-game.png)

---

## Running your code

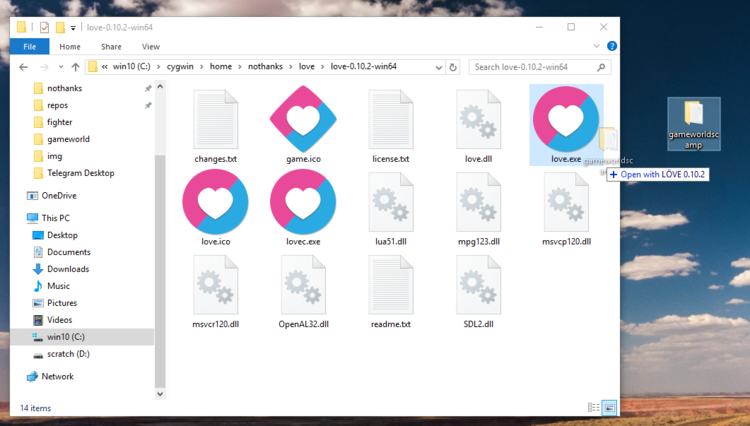

* Windows/Mac: drag and drop your folder with `main.lua` onto `love.exe`
* Linux: use the command line and run `love <dir>` where `<dir>` is the location of your code.

![](run-windows.resize.png)

---

# OK, let's make a game!

We're going to make ...

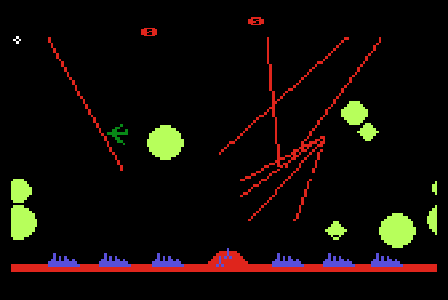

## Missile Command by Atari, Inc (1980)

![](Missile_Command.jpg)
![](Missile_Command_A5200.png)

---

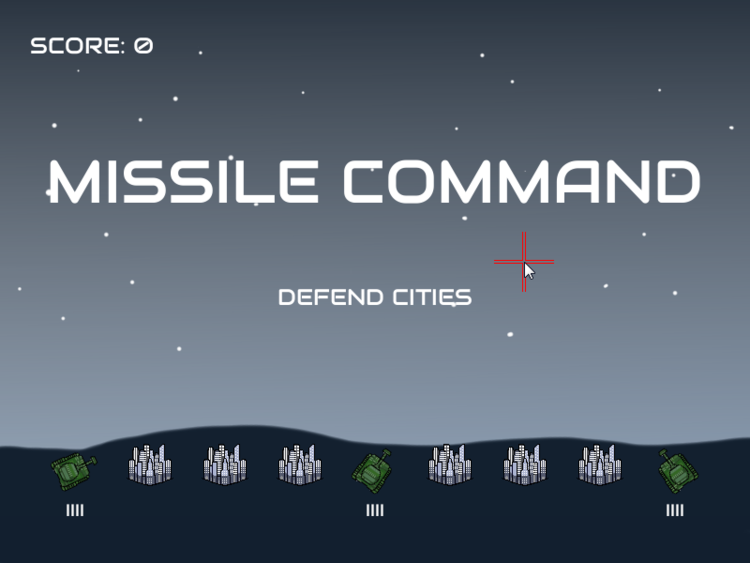

![](final_new_game-resized.png)

???

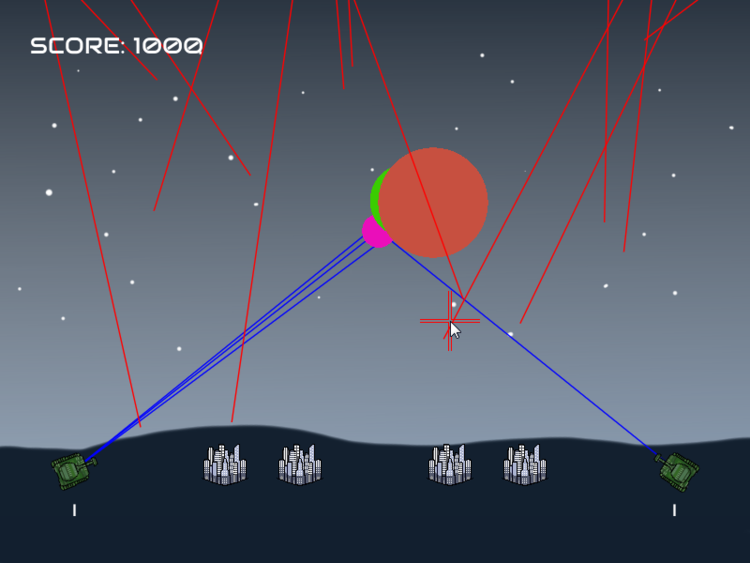

Note the different elements:

* Background
* Targets (bases and cities)
* UI Text
* Cursor
* Score
* Key to start New Game

---

![](final-resized.png)

???

* Enemy Missiles
* Counter Missiles
* Explosions
* Sound Effects
* Music

---

## Elements

Here are the elements that you saw in the previous two slides.

We will do them in this order:

* Background
* Cursor
* Key to start New Game
* Targets (bases and cities)
* Counter Missiles
* Explosions
* Enemy Missiles

And if we have time:

* Title and Score (Basic UI)
* Fonts (Advanced UI)
* Music
* Sound Effects

---

## diff utility

All changes that you are to make to your code will be in something akin to diff format.

* Lines that start with a space (nothing) should be left alone.
* Lines that start with a `+` should be added.
* Lines that start with a `-` should be removed.
* Lines that contain `--<<etcetera>>` mean that extra code has been removed to help fit on a slide.

```patch
 Hello there!
+I want you to add this line!
-but you should remove this line.
 --<<etcetera>>
 Not game over, but "The End".
```

Would result in:

```patch
 Hello there!
 I want you to add this line!
 --<<etcetera>>
 Not game over, but "The End".
```

---

## Lua - Comments

Sometimes it's nice to leave notes for other developers.

```lua
-- This is a single line comment
```

---

## Lua - Variables

A variable is a named storage location that we can store things in.

```lua
-- Boolean (true or false)
cats_are_cute = true
the_earth_is_flat = false

-- Strings (series of characters)
my_cats_name = "Dinah, Warmonger of Doom"
worst_fear = 'Being mauled by my cat'

-- Numbers (integers or doubles)
fingers_on_my_hand = 5
centimeters_in_an_inch = 2.54
times_attacked_by_a_bear = 0
bank_account_balance = -9000

-- Tables (collection of other variables)
basketball_baskets = {2,2,1,3}

player = {}
player.name = "Mario"
player.lives = 3
player.has_mushroom = false
player.princess = {name="Peach",has_mushroom=true}
```

---

## Lua - Functions

A function is a series of instructions that are packaged as a unit.

```lua
player = {
  name = "Mario",
  lives = 3,
  has_mushroom = false,
}

function print_name(player)
  print(player.name)
  return player.lives,player.has_mushroom
end

local lives,has_mushroom = print_name(player) -- Mario
print(lives) -- 3
print(has_mushroom)  -- false

```

---

## Lua - Function Scope

The scope of a function is what variables a function can use.

```lua
-- A global variable can be accessed anywhere after it is stored
lives = 6 -- global variable
friend = "Toad"

function print_name()
  -- A local variable can only be accessed for the rest of the function block
  local friend = "Luigi" -- local variable
  print(friend .. "[" .. lives .. "]")
end

print_name() -- Luigi[6]
print(friend) -- Toad
```

---

## LÖVE - Callbacks

When specific functions are defined, love will treat them as "callbacks" or functions that the framework chooses when to call.

```lua
function love.load()
  -- When LÖVE starts
end

function love.draw()
  -- When LÖVE wants to know what to draw to the screen
end

function love.update(dt)
  -- When LÖVE wants to know what to update
end

function love.mousepressed(x,y,b)
  -- When LÖVE wants to know what to do when you push a mouse button
end

function love.keypressed(key)
  -- When LÖVE wants to know what to do when you push a key on the keyboard
end
```

---

## LÖVE - love.graphics.newImage

`image = love.graphics.newImage( filename )`

Arguments:

* string `filename` - The filepath to the image file.

Returns:

* Image `image` - An Image object which can be drawn on screen.

http://love2d.org/wiki/love.graphics.newImage

---

## LÖVE - love.graphics.draw

`love.graphics.draw( drawable, x, y, r, sx, sy, ox, oy )`

Arguments:

* Drawable `drawable` - A drawable object.
* number `x` (0) - The position to draw the object (x-axis).
* number `y` (0) - The position to draw the object (y-axis).
* number `r` (0) - Orientation (radians).
* number `sx` (1) - Scale factor (x-axis).
* number `sy` (`sx`) - Scale factor (y-axis).
* number `ox` (0) - Origin offset (x-axis).
* number `oy` (0) - Origin offset (y-axis).

Returns:

* None

http://love2d.org/wiki/love.graphics.draw

---

## Get On With It!

![](get_on_with_it.jpg)

### Let's make a game already!

---

## Code Editor

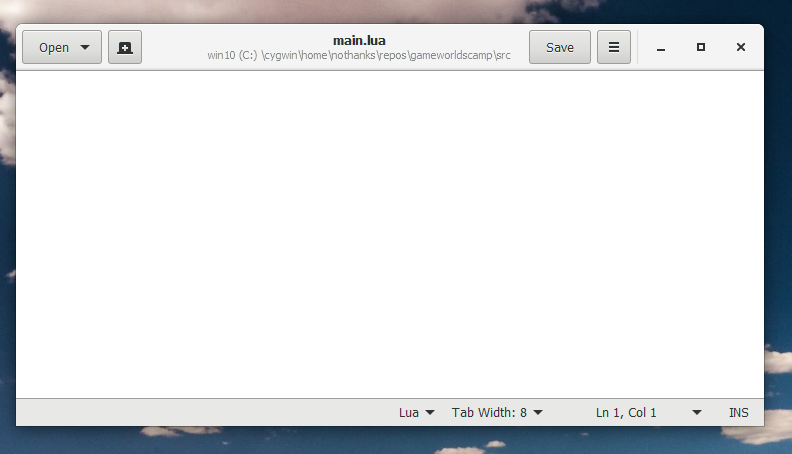

Open up `main.lua` with your code editor of choice. Here's me using gEdit!

![](gedit.png)

---

## Background

Set up the load and draw callbacks and use `love.graphics.newImage` and `love.graphics.draw` to draw the background.

```patch
 function love.load()

   g_images = {}
+  g_images.background = love.graphics.newImage("images/background.png")

--<<etcetera>>

 end

 function love.draw()

+  love.graphics.draw(g_images.background)

--<<etcetera>>

 end
```

---

## LÖVE - love.mouse.getPosition()

`x,y = love.mouse.getPosition()`

Arguments:

* None

Returns:

* number `x` - The position of the mouse along the x-axis.
* number `y` - The position of the mouse along the y-axis.

http://love2d.org/wiki/love.mouse.getPosition

---

## Cursor

Let's add a `draw_ui()` function and use `love.mouse.getPosition()` to draw the cursor.

+  local mousex,mousey = love.mouse.getPosition()
+  love.graphics.draw(g_images.cursor,mousex,mousey,0,1,1,32,32)

 end
```

---

## Lua - Operators

Operators are symbols that tell the interpreter to perform mathematical or
logical operations. We will be using the following:

* Equality: `==` (e.g. `A == B`)
* Less Than `<` (e.g. `A < B`)
* Logical Not: `not` (e.g. `A == not B`)
* Logical And: `and` (e.g. `A and B`)
* Addition: `+` (e.g. `A + B`)
* String Concatination: `..` (e.g. `"A".."B"`)

Lua has much more:

* Arithmetic Operators: `+`, `-`, `*`, `/`, `%`, `^`, `-`
* Relational Operators: `==`, `~=`, `>`, `<`, `>=`, `<=`
* Logical operators:  `and`, `or`, `not`
* Misc: `..`, `#`

---

## Lua - Conditionals

Lua also has syntax to perform conditionals.

```lua
if attacked_by_bear then
  run_in_fear = true
end
```

And here is a more complex if-then-elseif example:

```lua
if cat_name == "dinah" then
  print("Oh no! Please spare my life!")
elseif cat_name == "garfield" then
  print("Where'd my lasagne go?")
else
  print("I fear no cat! Get out of here, " .. cat_name .. "!")
end
```

---

## New Game (1/2)

Let's load the missile command library that will have all of the game logic.

```patch
 missilecommandlib = require "missilecommand"

 function love.load()

   g_images = {}
   g_images.background = love.graphics.newImage("images/background.png")
   g_images.cursor = love.graphics.newImage("images/cursor.png")

--<<etcetera>>

new_game()

 end

 function new_game()

   g_mc = missilecommandlib.new()

 end
```

---

## New Game (2/2)

We will use the `love.keypressed(key)` callback to detect the spacebar for game states.

```patch
 function love.keypressed(key)

   if key == "space" then
     if g_mc:is_new_game() then
       g_mc:start_new_game()
     end
     if g_mc:is_gameover() then
       new_game()
     end
   end

 end
```

---

## Lua - pairs

Lua has an iterator system designed for tables with content in them. When you need to do something for every entry in a table, we use can `pairs`.

```lua
basketball_baskets = {2,2,3,1,2}

for i,v in pairs(basketball_baskets) do
  print("basket number: "..i..", points scored: "..v)
end
-- basket number: 1 points scored: 2
-- basket number: 2 points scored: 2
-- basket number: 3 points scored: 3
-- basket number: 4 points scored: 1
-- basket number: 5 points scored: 2

```

---

## Targets - Cities and Bases (1/3)

Let's load the target assets and set up a `draw_targets()` function.

---

## Targets - Cities and Bases (2/3)

Let's implement the `draw_targets()` function. This will draw the individual bases and targets. The bases will be drawn at an angle so that you get an idea where you're aiming. We will use `:find_angle_to_position` for this.

```patch
 function draw_targets(targets)

+  for _,target in pairs(targets) do
     if target.alive then

       if target.type == "base" then
         local mousex,mousey = love.mouse.getPosition()
         local angle = g_mc:find_angle_to_position(target,mousex,mousey)
         love.graphics.draw(g_images.base,target.x,target.y,angle,1,1,32,32)
       else
         love.graphics.draw(g_images.city,target.x,target.y,0,1,1,32,32)
       end

end
+  end

 end
```

---

## Targets - Cities and Bases (3/3)

Let's hook up the base reloading so that we don't run out of ammo.

```patch
 function love.update(dt)

   if not g_mc:is_gameover() and not g_mc:is_new_game() then
     g_mc:update_ammo(dt)
     --<<etcetera>>
   end

 end
```

---

## LÖVE - love.graphics.setColor()

`love.graphics.setColor( red, green, blue, alpha )`

Arguments:

* number `red` - The amount of red.
* number `green` - The amount of green.
* number `blue` - The amount of blue.
* number `alpha` (255) - The amount of alpha. The alpha value will be applied to all subsequent draw operations, even the drawing of an image.

Return:

* None

http://love2d.org/wiki/love.graphics.setColor

---

## Counter Missiles (1/2)

Let's add a `draw_missiles()` function we can use to draw missiles. Since we will re-use this function, we will set the color in the `love.draw()` callback using `love.graphics.setColor()`.

```patch
 function love.draw()

   love.graphics.draw(g_images.background)

+  love.graphics.setColor(0,0,255)
   draw_missiles(g_mc:get_counter_missiles())
   love.graphics.setColor(255,255,255)

   draw_targets(g_mc:get_targets())

   draw_ui()

 end

 function draw_missiles(missiles)

   for _,missile in pairs(missiles) do
     love.graphics.line(missile.source.x,missile.source.y,
       missile.current.x,missile.current.y)
   end

 end
```

---

## Counter Missiles (2/2)

Let's add the logic so that the counter missiles move. We will use `:update_counter_missiles()`.

```patch
 function love.update(dt)

   if not g_mc:is_gameover() and not g_mc:is_new_game() then
     g_mc:update_ammo(dt)
+    g_mc:update_counter_missiles(dt)
     --<<etcetera>>
   end

 end
```
```patch
 function love.mousepressed(x,y,button)

   if not g_mc:is_new_game() then
     g_mc:fire_counter_missile(x,y,button)
   end

 end
```

---

## Lua - math.random()

When you need a random number, Lua's `math` module has one for you to use. When a single argument is provided, it will return a random number from 1 to the number provided.

```lua
print(math.random(10)) -- 1
print(math.random(10)) -- 4
print(math.random(10)) -- 2
print(math.random(10)) -- 8
print(math.random(10)) -- 9
print(math.random(10)) -- 5
print(math.random(10)) -- 10

```

---

## LÖVE - love.graphics.circle()

Synopsis

love.graphics.circle( mode, x, y, radius )

Arguments:

* DrawMode `mode` - How to draw the circle.
* number `x` - The position of the center along x-axis.
* number `y` - The position of the center along y-axis.
* number `radius` - The radius of the circle.

Returns:

* None

http://love2d.org/wiki/love.graphics.circle

---

## Explosions

Let's set up `draw_explosions()` function to draw our explosions. We use `math.random()` to make the colors change every frame.

```patch
 function love.draw()
   --<<etcetera>>
   draw_explosions(g_mc:get_counter_missiles())

   draw_targets(g_mc:get_targets())

   draw_ui()

 end
```
```patch
 function draw_explosions(counter_missiles)

   for _,missile in pairs(counter_missiles) do
     if missile.explode then
+      love.graphics.setColor(math.random(255),math.random(255),math.random(255))
+      love.graphics.circle("fill",
+        missile.current.x,missile.current.y,missile.explode*64)
     end
   end
   love.graphics.setColor(255,255,255)

 end
```

---

## Enemy Missiles

Let's reuse our `draw_missiles()` function and wrap it with a new color; red. We will also update the missile and wave logic.

```patch
 function love.draw()
   --<<etcetera>>
+  love.graphics.setColor(255,0,0)
   draw_missiles(g_mc:get_enemy_missiles())
   love.graphics.setColor(255,255,255)

   draw_targets(g_mc:get_targets())

   draw_ui()

 end
```
```patch
 function love.update(dt)

   if not g_mc:is_gameover() and not g_mc:is_new_game() then
     g_mc:update_ammo(dt)
     g_mc:update_counter_missiles(dt)
     g_mc:update_enemy_missiles(dt)
     g_mc:update_next_wave(dt)
   end

 end
```

---

## LÖVE - love.graphics.printf

`love.graphics.printf( text, x, y, limit, align )`

Arguments:

* string `text` - A text string.
* number `x` - The position on the x-axis.
* number `y` - The position on the y-axis.
* number `limit` - Wrap the line after this many horizontal pixels.
* AlignMode `align` ("left") - The alignment.

Returns:

* None

http://love2d.org/wiki/love.graphics.printf

---

## Title and Score (Basic UI)

Let's add some basic UI elements using `love.graphics.printf()`. We will check `:is_new_game()` and `:is_gameover` to determine what to show.

```patch
 function draw_ui()
   love.graphics.print("SCORE: "..g_mc:get_score(),32,32)

   if g_mc:is_new_game() then
     love.graphics.setFont(g_fonts.title)
+    love.graphics.printf("MISSILE COMMAND",0,150,800,"center")
+    love.graphics.printf("DEFEND CITIES",0,300,800,"center")
   elseif g_mc:is_gameover() then
     love.graphics.setFont(g_fonts.title)
+    love.graphics.printf("THE END",0,300,800,"center")
   end
   love.graphics.setFont(g_fonts.default)

   local mousex,mousey = love.mouse.getPosition()
   love.graphics.draw(g_images.cursor,mousex,mousey,0,1,1,32,32)

 end
```

---

## LÖVE - love.graphics.newFont

`font = love.graphics.newFont( filename )`

Arguments:

* string `filename` - The filepath to the BMFont or TrueType font file.

Returns:

* Font `font` - A Font object which can be used to draw text on screen.

http://love2d.org/wiki/love.graphics.newFont

---

## LÖVE - love.graphics.setFont

`love.graphics.setFont( font )`

Arguments:

* Font `font` - The Font object to use.

Returns:

* None

http://love2d.org/wiki/love.graphics.setFont

---

## Fonts - Advanced UI (1/2)

Let's make the UI look better by adding some fonts with `love.graphics.newFont()`.

```patch
 function love.load()
   --<<etcetera>>
   g_fonts = {}
   g_fonts.default = love.graphics.newFont("fonts/Audiowide-Regular.ttf",18)
   g_fonts.title = love.graphics.newFont("fonts/Audiowide-Regular.ttf",64)
+  g_fonts.subtitle = love.graphics.newFont("fonts/Audiowide-Regular.ttf",24)
   love.graphics.setFont(g_fonts.default)

   new_game()

 end
```

---

## Fonts - Advanced UI (2/2)

Let us set them in the UI with `love.graphics.setFont()`.

```patch
 function draw_ui()

+  love.graphics.setFont(g_fonts.subtitle)
   love.graphics.print("SCORE: "..g_mc:get_score(),32,32)

   if g_mc:is_new_game() then
     love.graphics.setFont(g_fonts.title)
     love.graphics.printf("MISSILE COMMAND",0,150,800,"center")
+    love.graphics.setFont(g_fonts.subtitle)
     love.graphics.printf("DEFEND CITIES",0,300,800,"center")
   elseif g_mc:is_gameover() then
     love.graphics.setFont(g_fonts.title)
     love.graphics.printf("THE END",0,300,800,"center")
   end
   love.graphics.setFont(g_fonts.default)

   local mousex,mousey = love.mouse.getPosition()
   love.graphics.draw(g_images.cursor,mousex,mousey,0,1,1,32,32)

 end
```

---

## LÖVE - love.audio.newSource

Arguments:

* string `filename` - The filepath to the audio file.
* SourceType `type` ("stream") - Streaming or static source.

Returns:

* None

---

## LÖVE - Source:play()

## LÖVE - Source:setLooping()

## LÖVE - Source:stop()

```lua
meow = love.audio.newSource("meow.ogg")

meow:stop()
meow:setLooping(false)
meow:play()

```

---

## Music

Let's use `love.audio.newSource` `source:setLooping()` and `source:play()` to start some music when the game loads.

```patch
 function love.load()

   g_images = {}
   g_images.background = love.graphics.newImage("images/background.png")
   g_images.cursor = love.graphics.newImage("images/cursor.png")
   g_images.base = love.graphics.newImage("images/base.png")
   g_images.city = love.graphics.newImage("images/city.png")

   g_fonts = {}
   g_fonts.default = love.graphics.newFont("fonts/Audiowide-Regular.ttf",18)
   g_fonts.title = love.graphics.newFont("fonts/Audiowide-Regular.ttf",64)
   g_fonts.subtitle = love.graphics.newFont("fonts/Audiowide-Regular.ttf",24)
   love.graphics.setFont(g_fonts.default)

   g_music = love.audio.newSource("music/mmc_3.ogg")
   g_music:setLooping(true)
+  g_music:play()

   new_game()

 end
```

---

## Sound Effects (1/3)

Let's add a few sound effects using `love.audio.newSource()`, `source:stop()` and `source:play()`. We add `source:stop()` so that the sound effects give an immediate response.

```patch
 function love.load()

  --<<etcetera>>

   g_sounds = {}
   g_sounds.missile_explode =
     love.audio.newSource("sounds/missile_explode.ogg","static")
+  g_sounds.shoot =
+    love.audio.newSource("sounds/shoot.ogg","static")
   g_sounds.game_status =
     love.audio.newSource("sounds/game_status.ogg","static")
   g_sounds.target_explode =
     love.audio.newSource("sounds/target_explode.ogg","static")

   new_game()

 end
```

---

## Sound Effects (2/3)

Here we hook the sound effects into the `love.update` callback by using `:is_target_exploding()` and `:is_missile_exploding()`

```patch
 function love.update(dt)

   if not g_mc:is_gameover() and not g_mc:is_new_game() then
     g_mc:update_ammo(dt)
     g_mc:update_counter_missiles(dt)
     g_mc:update_enemy_missiles(dt)
     g_mc:update_next_wave(dt)
   end

   if g_mc:is_target_exploding() then
     g_sounds.target_explode:stop()
     g_sounds.target_explode:play()
   end

   if g_mc:is_missile_exploding() then
     g_sounds.missile_explode:stop()
     g_sounds.missile_explode:play()
   end

 end
```
---

## Sound Effects (3/3)

Let's also add sound effects to shooting, using `:fire_counter_missile`'s return value and a sound effect for when the space bar is pressed.

```patch
 function love.mousepressed(x,y,button)

   if not g_mc:is_new_game() then
-    g_mc:fire_counter_missile(x,y,button)
+    if g_mc:fire_counter_missile(x,y,button) then
+      g_sounds.shoot:stop()
+      g_sounds.shoot:play()
+    end
   end

 end
```
```patch
 function love.keypressed(key)

   if key == "space" then
     g_sounds.game_status:stop()
     g_sounds.game_status:play()
     --<<etcetera>>
   end
```

---

## Targets - Continued

Let's show when bases are out of ammo and how much ammo they have left.

```patch
 function draw_targets(targets)

   for _,target in pairs(targets) do
     if target.alive then

       if target.type == "base" then
         local mousex,mousey = love.mouse.getPosition()
         local angle = g_mc:find_angle_to_position(target,mousex,mousey)
+        if target.ammo < 1 then
+          love.graphics.setColor(127,127,127)
+        end
         love.graphics.draw(g_images.base,target.x,target.y,angle,1,1,32,32)
+        love.graphics.printf(string.rep("I",target.ammo),
+          target.x-32,target.y+32,64,"center")
+        love.graphics.setColor(255,255,255)
       else --if target.type == "city" then
         love.graphics.draw(g_images.city,target.x,target.y,0,1,1,32,32)
       end

     end
   end

 end
```

---

## Creative Learning

Nice job! You've gotten the tutorial done! Go ahead and play around!

Some ideas:

* Change the explosion radius
* Add rapid fire
* Make enemy waves happen faster
* Change the art!

*Check out missilecommand.lua for more logic!*

---

class: center, middle

# You did it!

## Thanks for using LÖVE

Contact me at @josefnpat or josefnpat@gmail.com if you have questions!
